Cordless Soldering Irons
Kotelyzer 90 Auto II

Kotelyzer 90 Auto II

The gas-type soldering iron Kotelyzer 90 Auto II is a best-selling automatic-ignition type for professionals.
The ejector unit has been improved to give vastly enhanced ignition performance compared to earlier Kotelyzer models.
Equivalent to 20W – 80W electric soldering irons and usable for approximately 2 hours after a single filling of gas.


NameKotelyzer 90 Auto II
Stock Number90A·90B·90C
Total Length (Body and Tip)Approximately 265mm
DeadweightApproximately 100g
Heat Output (Soldering Iron)Approximately 250℃-約500℃
Equivalent to approximately 20W – 80W electric soldering iron
Heat Output (Hot-air Blower)Approximately 650℃
Gas Filling QuantityApproximately 28ml
Continuous usage time after a single fillingApproximately 2 hours/td>

Content of Kotelyzer 90 Auto II Set

Stock NumberProduct NameIllustrative Drawing90A90B90C
70-01-01Iron Tipコテ先
70-01-11Iron Tipコテ先
90-02Iron Tip capコテ先キャップ
80-35Ejector Spannerエゼクタースパナ
70-01-52Hot-air Blowerホットブロー
70-01-55Heat Shrink (Small)ヒートシュリンク(小)
70-40UMetal Storage Case (Small)金属収納ケース(小)
70-59Dedicated Gases (M)専用ガス(M)

Gas-type Soldering Iron Kotelyzer 90 Auto II Optional Parts (The iron tip and hot-air blower are common to 90 Auto II and 70.)

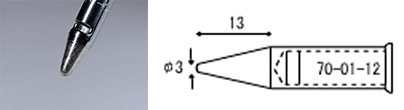

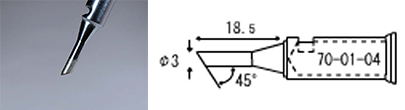

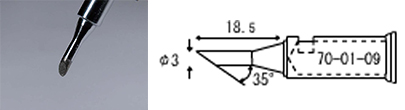

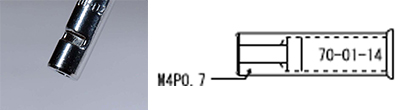

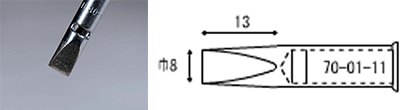

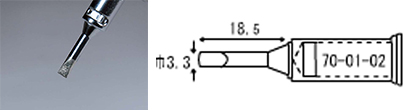

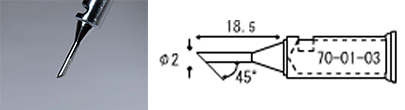

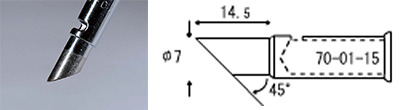

Iron Tip (Lead-free)

Hot-air Blower Tip

Heat Shrink

Hook 70-52U

Metal Storage Case (Small) 70-40U

SUS Cover 90-03

Hot Knife 70-01-16

Ejector Unit 90-07UN

Iron Tip cap 90-02

Knurled Cap 90-14
